Two Decades of Underwater Cutting Expertise, Now Serving India
Precision underwater cutting technology for polymer and petrochemical resin processing — engineered in South Korea since 2003, now available to Indian manufacturers through AUTOMEK Engisol LLP.
N&B Corporation Co., Ltd. was founded in Korea in 2003 and has since built specialized expertise in the design, manufacture and installation of Underwater Cutting (UWC) / underwater pelletizing systems for the polymer and petrochemical industry.
How it works
The Underwater Pelletizing Process
Molten resin from the extruder is pushed through the die plate into a water-filled cutting chamber. A high-speed rotating cutter blade slices the extrudate into uniform pellets at the die face, which are immediately carried away by the circulating process water and separated from the water in the dryer.
-
Extrusion
-
Underwater Cutting
-
Transport & Drying
-
Uniform Pellets
What we offer
Under Water Cutting Systems
- Optimized system design & supply
- For petrochemical, compounding, masterbatch & engineering plastics
- Design, manufacturing, supply, installation, commissioning
Specialized Components
Die plates & cutter knives (high durability)
Cost reduction through local sourcing
Genuine spares & wear parts
Maintenance & Optimization
- Process optimization via data analysis
- Multi-material process support
- Field service & commissioning support
Key Products - 1
Under Water Pelletising System
Compact, mobile cutting heads that mount directly at the die face, engineered for smooth removal, safe continuous operation and low power consumption.

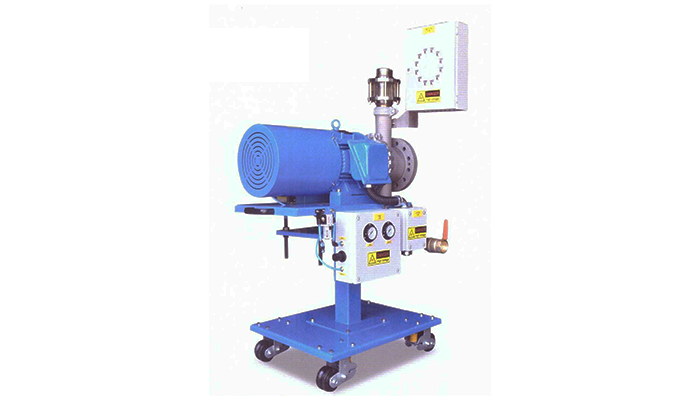

Pelletizer Cutters
Compact cutter unit for lower to higher throughout lines, mounted on a mobile wheeled base for easy positioning and die-face access during changeover and maintenance.
- Easy removal & attachment
- Low power consumption
- Safe, stable production
- Mobile wheeled base
- Available in three models M5,M6 and M7
Key Products - 2
Process Water System (PWS) with Dryer
The PWS circulates, conditions and separates the cutting water from the pellet stream, then dries the pellets in a single integrated skid — delivering N&B’s signature low-moisture, low dust, consistently sized pellets.

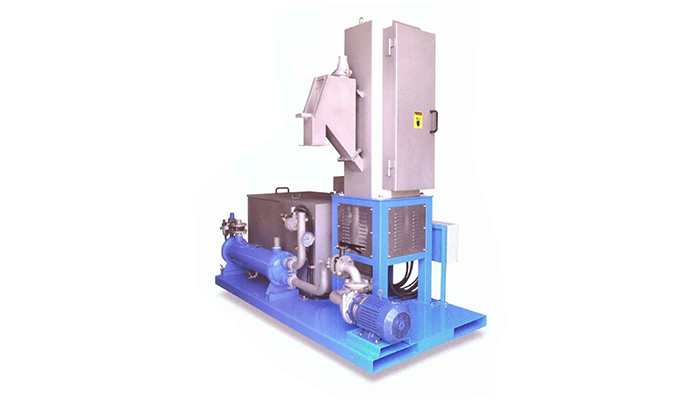

PWS (M6)
Process water system with integrated dryer sized for M6 class pelletizing lines. Maintains optimal water temperature and transfer efficiency for a clean, contamination-free process.

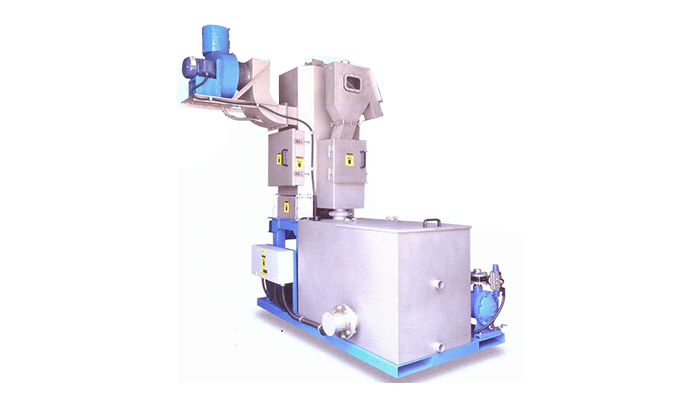

PWS (M7)
Higher-capacity process water and drying skid matched to M7-class pelletizing lines, built for the same clean, lowdust, narrow-footprint operation. fixed pedestal and rolling base configurations to match plant layout.
Key Products - 3
Control & Process Accessories
The PWS circulates, conditions and separates the cutting water from the pellet stream, then dries the pellets in a single integrated skid — delivering N&B’s signature low-moisture, low dust, consistently sized pellets.

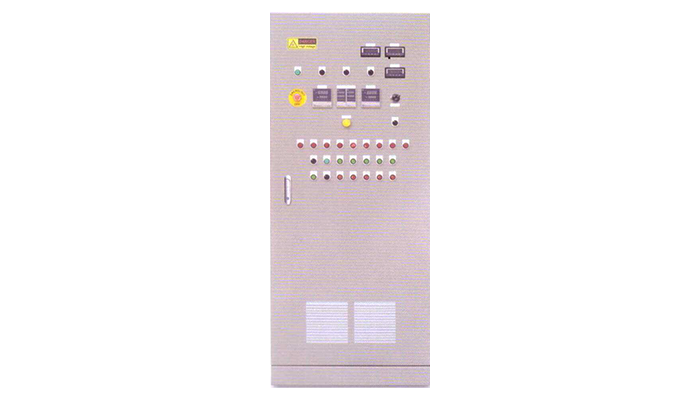

Control Panel
Auto-start capable control panel that manages the full cutting, water and drying sequence for reliable, repeatable operation.

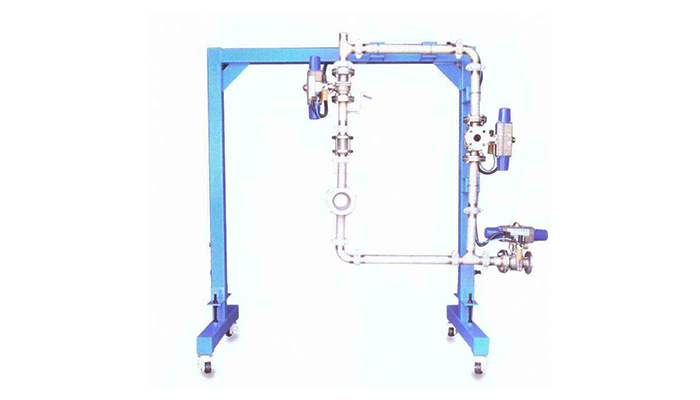

Water By-Pass
Maintains the process water at a stable set temperature by diverting circulating water, protecting pellet quality and die life.

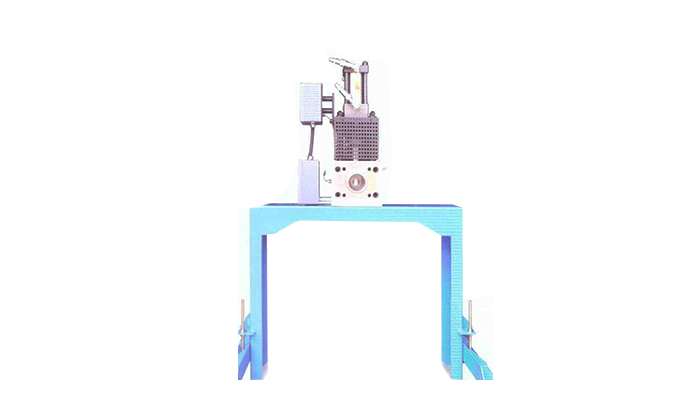

Start-up Valve
Diverts melt away from the die during start-up to resolve die-hole clogging, minimizing material loss before cutting begins.
Our machines can process
PLA
PE
- PP
- ABS
- PVC
- TPE
- TPU
- PET
- Engineering Plastics
Trusted by
- LG Chem
- Kumho Polychem
- Lotte Chemical
- Kolon Industries
- GS Caltex
- Henkel Korea
- Hanwha Compound
- Aekyung Chemical and more.
Complete line, one partner.
AUTOMEK Engisol LLP supplies, installs and supports the full N&B Underwater Cutting System line in India
